Smart Curtain Switch - 1 Layer / Socket 120

Product Code: YO821k (R2W)

Features:

Plays Well With Motor
Compatible With Existing Wiring
Customized Run Time
Short and Long Press Mode
Switch Lock
Stop & Lock Button

Smart Curtain Switch - 1 Layer / Socket 120-WHI

Smart Curtain Switch - 1 Layer / Socket 120-SIL

Smart Curtain Switch - 1 Layer / Socket 120-GOL

Smart Curtain Switch - 1 Layer / Socket 120-GRA

Smart Curtain Switch - 1 Layer / Socket 120-BRO

Smart Curtain Switch - 1 Layer / Socket 120-PIN

Smart Curtain Switch - 1 Layer / Socket 120-ORA

Smart Curtain Switch - 1 Layer / Socket 120-YEL

Smart Curtain Switch - 1 Layer / Socket 120-GRE

Smart Curtain Switch - 1 Layer / Socket 120-AQU

Smart Curtain Switch - 1 Layer / Socket 120-BLU

Smart Curtain Switch - 1 Layer / Socket 120-BLA

Smart Curtain Switch - 1 Layer / Socket 120-SIM

Smart Curtain Switch - 1 Layer / Socket 120-GOM

Smart Curtain Switch - 1 Layer / Socket 120-GRM

Smart Curtain Switch - 1 Layer / Socket 120-BRM

Smart Curtain Switch - 1 Layer / Socket 120-PIM

Smart Curtain Switch - 1 Layer / Socket 120-ORM

Smart Curtain Switch - 1 Layer / Socket 120-YEM

Smart Curtain Switch - 1 Layer / Socket 120-GEM

Smart Curtain Switch - 1 Layer / Socket 120-AQM

Smart Curtain Switch - 1 Layer / Socket 120-BLM

Smart Curtain Switch - 1 Layer / Socket 120-BKM

Add Distinction to Your Living Space and Experience Convenience with Smart Curtain Switch

Features

Plays Well With Motor

Yoswit Smart Curtain Switch supports traditional AC motor. No re-wiring or re-decoration work is needed when you install Yoswit. It takes only a few minutes to replace the traditional curtain switch by Yoswit and your smart home will be ready.

Compatible With Existing Wiring

The wiring of Yoswit Smart Curtain Switch is same as the wiring of traditional curtain switch. Yoswit connects with your motor through L1, L2 and N line. There is no extra signal line needed.

Customized Run Time

You can also set the run time of the motor through Yoswit APP to customize the closed length of the curtains.

Short and Long Press Mode

Yoswit Smart Curtain Switch supports two button mode. Not only you can short press to totally open or close but also you can hold and release to control the curtain movement.

Switch Lock

Securely locks your to prevent accidentally turning the switch in home, office or public area. You can activate the lock by just simply click a button on our Yoswit App.

Stop & Lock Button

You can stop the moving of curtains or blinds by pressing the center button. You can also lock the switch by pressing the same button when the motor is not running.

Comparison

	Yoswit Smart Switch	Schneider (ULTI Ezinstall3)	Legrand (Arteor/Adorne/Radiant)
No Hub / Router
No Rewiring
No Setup
No Pairing
Curtain Switch
1&2 Layer			1 Layer
Available Socket Type	55 / 86 / 118 / 120	55 / 86	55 / 86 / 120
Technology	Bluetooth	RF	Zigbee / RF

Yoswit Smart Switch

No Hub / Router:
No Rewiring:
No Setup:
No Pairing:
Curtain Switch:
1&2 Layer:
Available Socket Type: 55 / 86 / 118 / 120
Technology: Bluetooth

Schneider
(ULTI Ezinstall3)

No Hub / Router:
No Rewiring:
No Setup:
No Pairing:
Curtain Switch:
1&2 Layer:
Available Socket Type: 55 / 86
Technology: RF

Legrand
(Arteor/Adorne/Radiant)

No Hub / Router:
No Rewiring:
No Setup:
No Pairing:
Curtain Switch:
1&2 Layer: 1 Layer
Available Socket Type: 55 / 86 / 120
Technology: Zigbee / RF

Leviton
(Decora)

No Hub / Router:
No Rewiring:
No Setup:
No Pairing:
Curtain Switch:
1&2 Layer:
Available Socket Type:
Technology:

LUTRON
(Caseta)

No Hub / Router:
No Rewiring:
No Setup:
No Pairing:
Curtain Switch:
1&2 Layer:
Available Socket Type:
Technology:

Bluetooth Version

We use Bluetooth 4.2 (also sometimes referred to as Bluetooth Low Energy or BLE) as the core processor of our products.

Compatible Devices

We support all Smart Ready products with our application installed. Please Click Here to get the growing list.

IOS Support

We support iOS 13.0 or later.

Android Support

We support Android 7 or later.

General
Product Name	Yoswit Smart Curtain Switch
Model	YO821k (R2W)
Socket Type	Socket 120
Revision	V7.0
Compliance	ETL,CE, FCC, RoHS
Manufacturer	Designed by Yoswit in Hong Kong, China / Assembled in Guangdong, China

Dimensions
Product Size

Mechanical
Operating Temperature	-10°C to 40°C
Operating Humidity	0-95% RH, Non-Condensing
Operating Environment	Interior
Operation	APP / Manual
Ingress Protection (IP)	20

Electrical
Operation Power	100-240V AC (50/60Hz)
Power Consumption	≤1W
Max. Load	440W

Wireless
Frequency	2.4GHz
Connection	Wifi 2.4G / BLE 4.2
Range	Open Area: >50m / Interior: 3-20m

Package
What's in the Box

WARNING !

Disconnect Power

To prevent severe shock or electrocution, always disconnect the power at the service panel before installation. Only licensed electricians should carry out the installation.

Basic Installation

1

Remove the old switch and disconnect the wires, please make sure that there is about 5mm of bare wire exposing.

2

Insert a small, flat screwdriver in notches on wall plate and twist gently to pry from frame to remove wall plate.

3

Connect the wires to the switch case. Make sure that the wires are secure.

Warning

To reduce risk of electrical shock, unit shall be properly grounded in accordance with local regulations or codes. Failure to connect the ground wire will result in an unsafe installation that could lead to personal injury.

4

Fasten the switch on wall by placing the proper wall mount components.

5

Turn on the circuit breaker and connect to the power.

6

Test your switch by tapping 2 to 3 times. Your lights will be on/off.

7

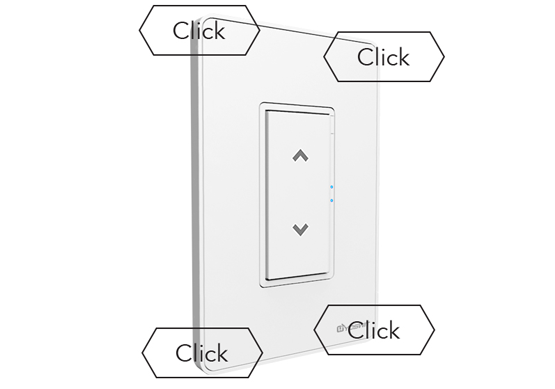

Snap wall plate to frame. There are four click-stops for adjusting the fit of the wall plate to the switch and the wall.

Installation complete.

Download the Yoswit App and enjoy it now!

Yoswit will automatically detect the switch and add to your device list.

Downloads
Certification	CE EMC CE LVD FCC RoHS
User Manual	Download Download(SC)
Data Sheet	Download
Leaflet	Smart Light Switch Full Catalogue Catalogue (ZH)
Yoswit App
Yoswit App (Android Apk)	Download
