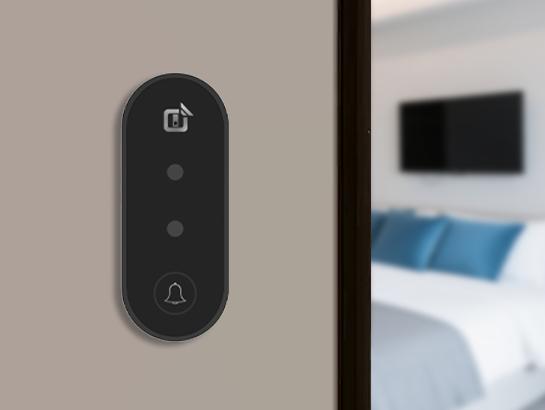

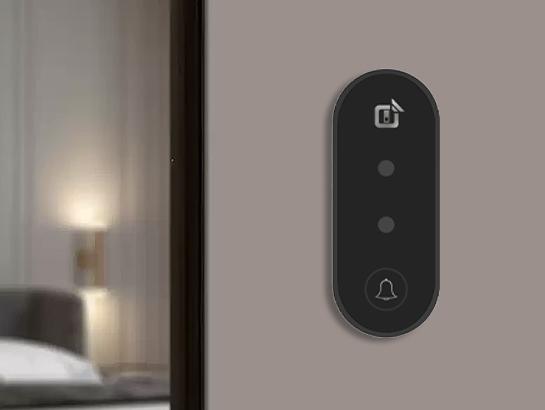

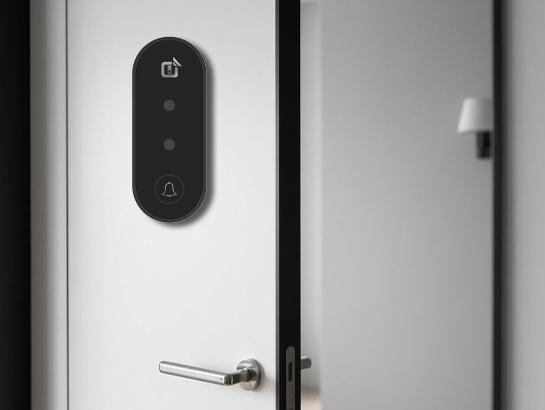

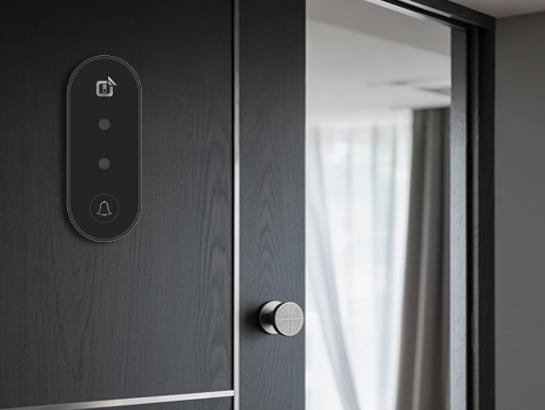

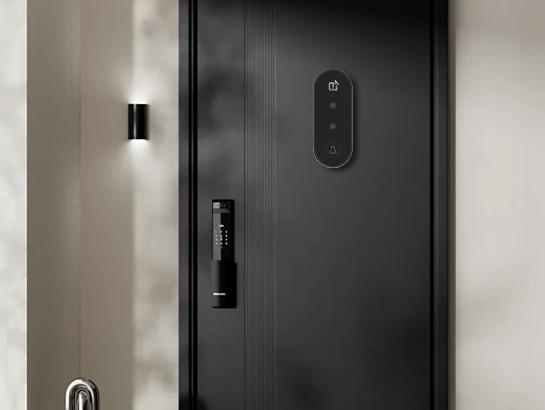

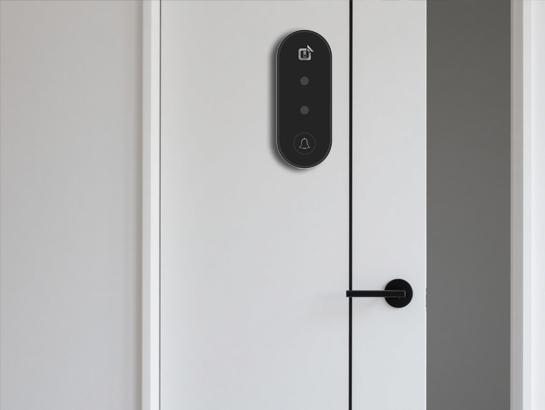

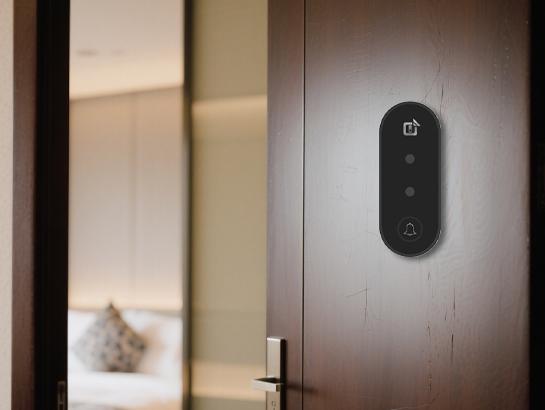

Yoswit Smart Video Doorbell
Product Code: YO172
Features:
- High-Definition Camera for Precise Facial Detection

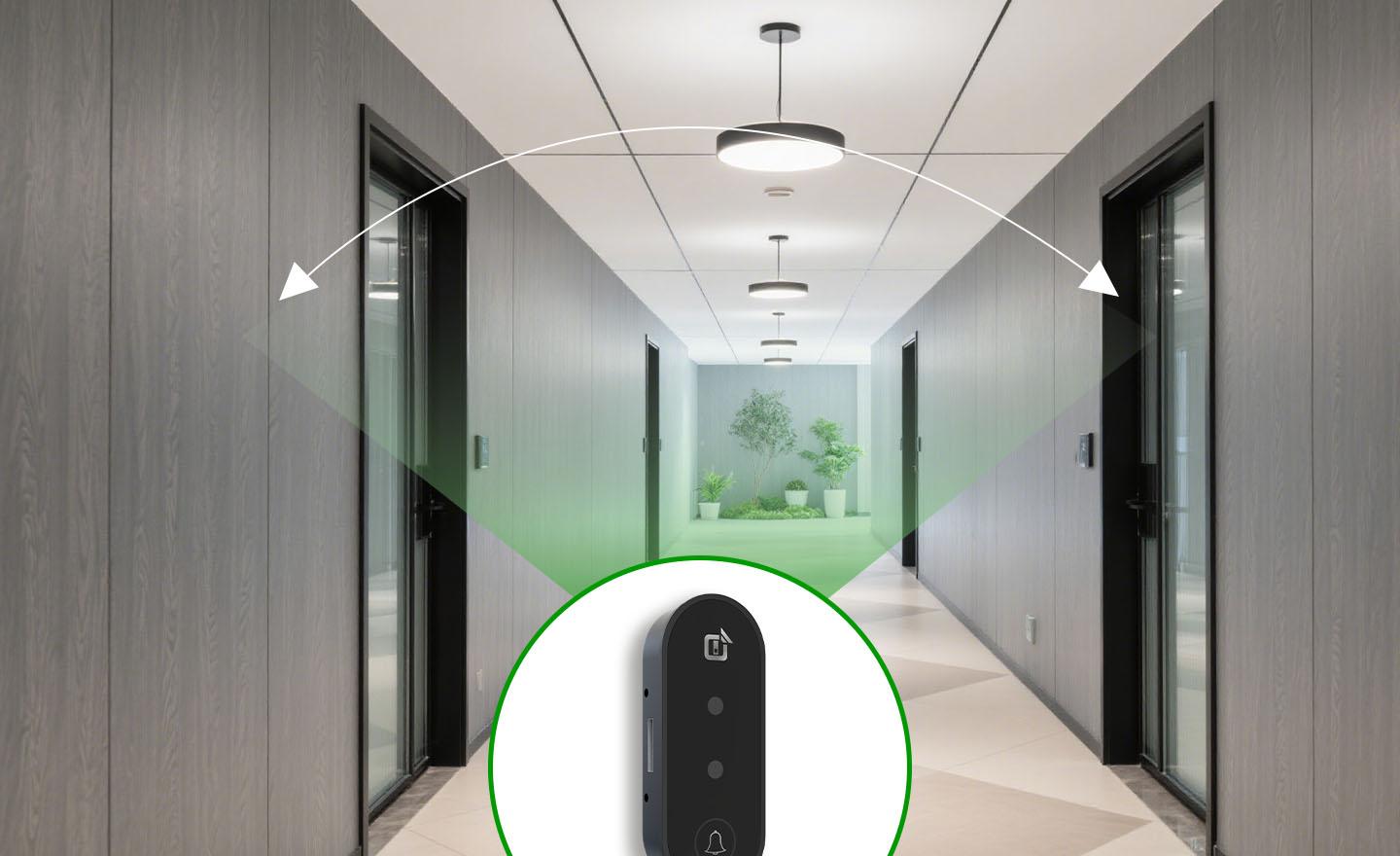

- Expansive Field of View Eliminates Blind Spots
- Exceptional Night Vision for Low-Light Clarity
- Customizable Volume to Suit Your Preferences

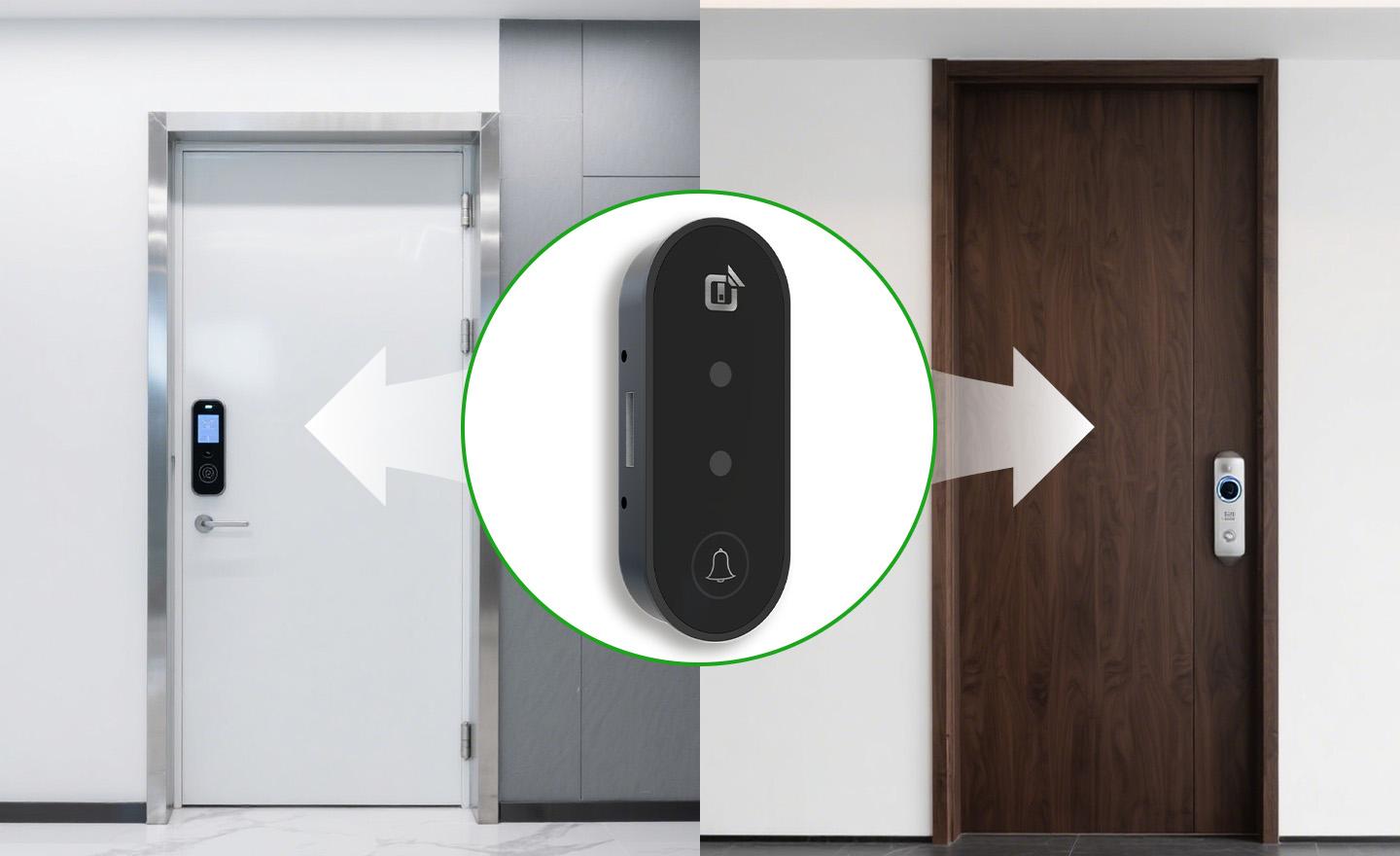

- Wide Compatibility with Access Control Systems
Features
Run Your Home from Your Phone
Mobile As Hub
Voice Control
Mesh-like Network
Remote Control
Room and Scenes
Away Detection
Schedule Timers
Password Protection
IFTTT
Bluetooth Version
We use Bluetooth 4.2 (also sometimes referred to as Bluetooth Low Energy or BLE) as the core processor of our products.
Compatible Devices
We support all Smart Ready products with our application installed. Please Click Here to get the growing list.
IOS Support
We support iOS 13.0 or later.
Android Support
We support Android 7 or later.
| General | ||
| Product Name |
Yoswit Smart Video Doorbell
|
|
| Model |
YO172
|
|
| EAN / UPC |
EAN: 0765756497749 / UPC: 765756497749
|
|
| Revision |
V1.0
|
|
| Compliance |
CE, FCC, RoHS
|
|
| Manufacturer |
Designed by Yoswit in Hong Kong, China / Assembled in Guangdong, China
|
|

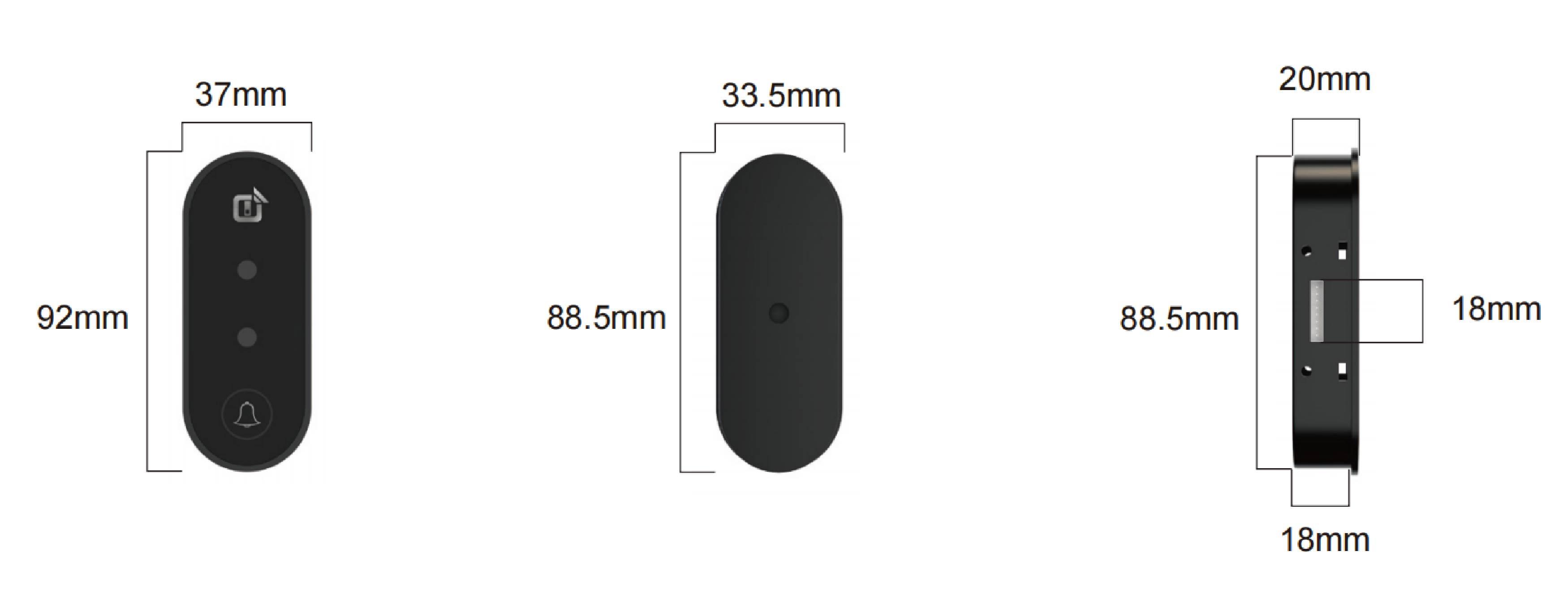

| Dimensions | ||
| Product Size |
|
|
| Specifications | ||
| Image Sensor |
1/2.7 inch CMOS
|
|
| Image Pixels |
2M 1080p
|
|
| Pixel Size |
3.0um*3.0um
|
|
| Video Output |
MJPG / YUY2
|
|
| Lens |
4.3mm
|
|
| Field of View |
73° No Distortion
|
|
| Function |
Support Infrared Light
|
|
| Sleep Model Current |
＜10mA
|
|
| Working Current |
＜300mA
|
|
| Storage Temperature |
-20℃ to 75℃
|
|
| Working Temperature |
-20℃ to 70℃
|
|
| Maximum Frame Rates |
MJPG 1920*1080@30fps / YUY2 1920*1080@30fps
|
|
| SNR Max |
≥40dB
|
|
| White Balance |
Auto, Manually
|
|
| Exposure |
Auto, Manually
|
|
| Camera Control |
Brightness, Saturation, Contrast, Sharpness, Hue, Definition, Gamma, Backlight Contrast, Gain
|
|
| Digital Interface |
5-pin 1.0mm USB2.0 No Driver
|
|
| Transfer Rates |
480Mb/S
|
|
| Operating Voltage |
DC5V
|
|
WARNING !
Disconnect Power
To prevent severe shock or electrocution, always disconnect the power at the service panel before installation. Only licensed electricians should carry out the installation.
Basic Installation
Installation complete.
Download the Yoswit App to your smart device and enjoy it now!
Yoswit will automatically detect the switch and add to your device list.
