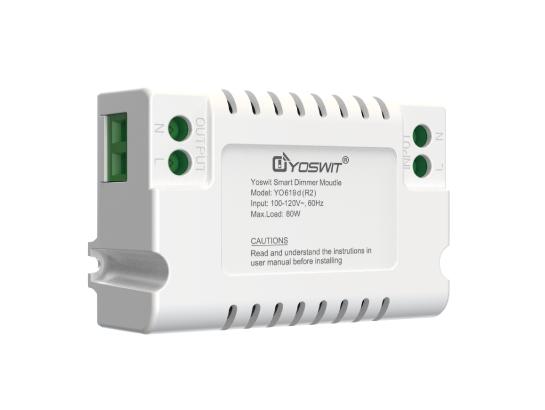

Smart TRIAC Dimmer Switch Module

Product Code: YO619d (R2)

Features:
  • No Switch Box Dependency

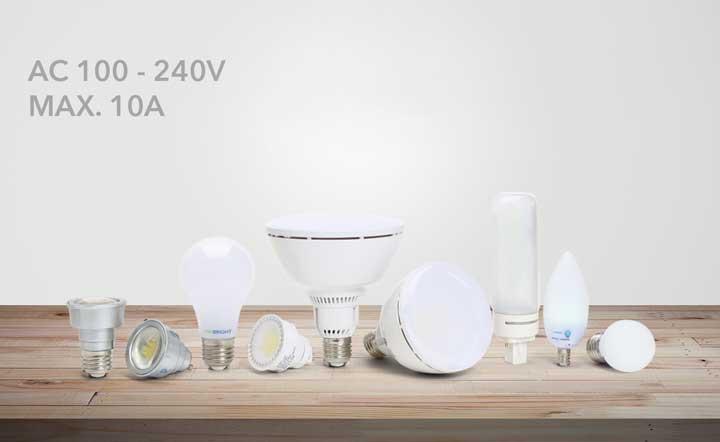

  • High Compatibility Dimmer
  • Brightness Adjustment for Customized Lighting Levels
  • Scene Modes for Setting Different Lighting Scenarios
  • Built-in Timer for Automation
  • No Hub Required for Wireless Control
  • Connects to a Hub for Remote Control
  • Proprietary Topology for Mesh-like Network
/files/inwall_dimmer_module_header.jpg
Smart Your Existing Lighting With Smart Dimmer Module

How the Yoswit Smart Dimmer Module Works

/files/619d-3.png

Features

Comparison

Yoswit Smart Dimmer Module
Yoswit Smart Dimmer Module
 Schneider
Schneider
(ULTI Ezinstall3)
Legrand
Legrand
(Arteor/Adorne/Radiant)
Leviton
Leviton
(Decora)
LUTRON
LUTRON
(Caseta)
No Hub / Router
No Setup
No Pairing
TRIAC Dimmer Module
Leading Edge & Trailing Edge Compatible
Built-In Timer
Technology Bluetooth Zigbee / RF

Yoswit Smart Switch

  • No Hub / Router:
  • No Setup:
  • No Pairing:
  • TRIAC Dimmer Module:
  • Leading Edge & Trailing Edge Compatible:
  • Built-In Timer:
  • Technology: Bluetooth

Schneider
Schneider
(ULTI Ezinstall3)

  • No Hub / Router:
  • No Setup:
  • No Pairing:
  • TRIAC Dimmer Module:
  • Leading Edge & Trailing Edge Compatible:
  • Built-In Timer:
  • Technology:

Legrand
Legrand
(Arteor/Adorne/Radiant)

  • No Hub / Router:
  • No Setup:
  • No Pairing:
  • TRIAC Dimmer Module:
  • Leading Edge & Trailing Edge Compatible:
  • Built-In Timer:
  • Technology: Zigbee / RF

Leviton
Leviton
(Decora)

  • No Hub / Router:
  • No Setup:
  • No Pairing:
  • TRIAC Dimmer Module:
  • Leading Edge & Trailing Edge Compatible:
  • Built-In Timer:
  • Technology:

LUTRON
LUTRON
(Caseta)

  • No Hub / Router:
  • No Setup:
  • No Pairing:
  • TRIAC Dimmer Module:
  • Leading Edge & Trailing Edge Compatible:
  • Built-In Timer:
  • Technology:

Run Your Home from Your Phone

Mobile As Hub
Mobile as Hub
Voice Control
Voice Control

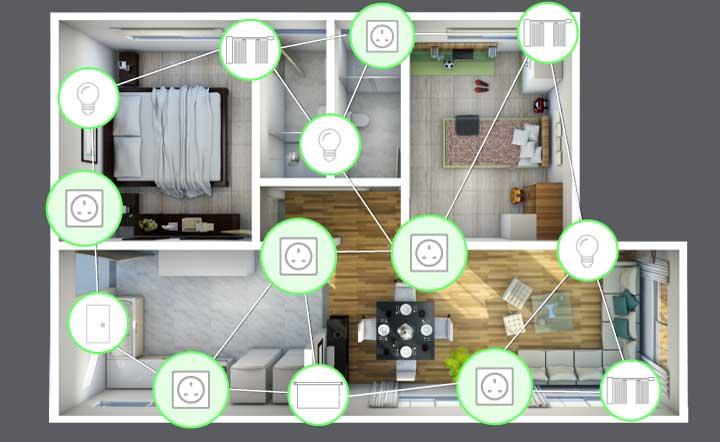

Mesh-like Network
Mesh-like Network
Remote Control
Remote Control
Rooms and Scenes
Away Detection
Away Detection
Schedule Timers
Schedule Timers
Password Protection
Password Protection
IFTTT
IFTTT
App Store
Android App
Read More

Bluetooth Version

We use Bluetooth 4.2 (also sometimes referred to as Bluetooth Low Energy or BLE) as the core processor of our products.

Compatible Devices

We support all Smart Ready products with our application installed. Please click here to get the growing list.

iOS Support

We support iOS 13.0 or later.

Android Support

We support Android 7 or later.

General
Product Name
Smart TRIAC Dimmer Switch Module
Model
YO619d (R2)
EAN / UPC
EAN: 0765756498180 / UPC: 765756498180
Revision
V1.0
Compliance
CE, FCC, RoHS
Manufacturer
Designed by Yoswit in Hong Kong, China / Assembled in Guangdong, China

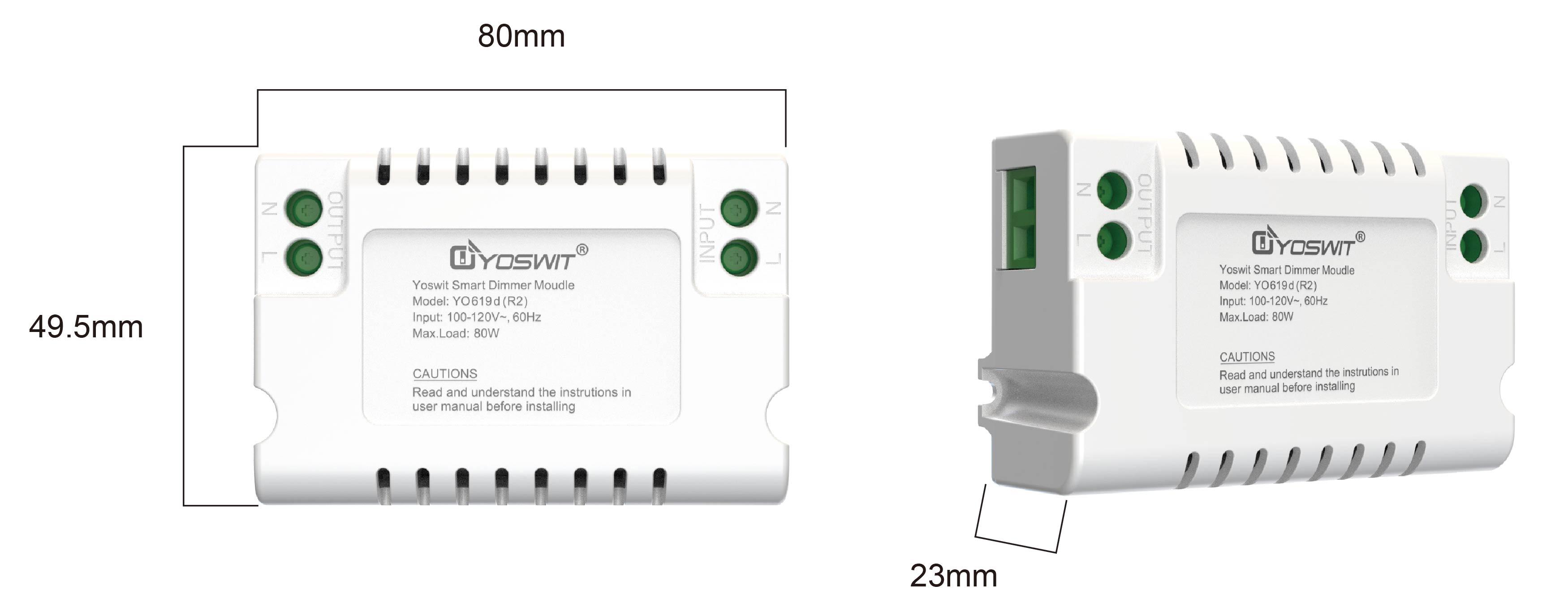

Dimensions
Product Size
Product Size
mechanical
Storage Conditions
-20°C to 60°C
Operation
APP
Operating Temperature
-10°C to 50°C
Operating Humidity
0-90% RH, Non-Condensing
Electrical
Input Voltage
100-240V AC (50/60Hz)
Frequency
60/50Hz Auto Detected at Power-up
Resistive Load Current
Max. 400W
Inductive Load Current
Max. 400W
Standby Power
<0.1W
Wireless
Frequency
2.4GHz
Connection
BLE 4.2
Range
Open area: >50m / Interior: 3-20m

Disconnect Power

warning
    Check the label and ensure the transformer has the proper input voltage and wattage for the job. Check the wire markings to ensure they match the wiring diagram on this installation guide.

Basic Installation

1

Select a suitable location capable of supporting the weight of the transformer. Use the two keyholes in the transformer case. It is recommended that the transformer be mounted vertically with the wiring compartment pointing down.

2

Remove the wiring compartment knockouts and install strain reliefs. With power turned off, route the input wires through a strain relief and connect the L wire to red and the N wire to blue. For all wire connections, use only UL-listed wire nuts and connectors of suitable size and type. The transformer case MUST be grounded in accordance with the N.E.C. Connect the ground wire to the transformer red wire.

warning

Warning

To reduce the risk of electric shock, the unit shall be properly grounded in accordance with local regulations or codes. Failure to connect the ground wire will result in an unsafe installation that could lead to personal injury.

warning

3

Bring the wires of the light fixture through the other open knockout and connect them to the transformer wires – positive to the red wire (+) and negative to blue wire (-).

86_1g_step1

Installation complete.

Download the Yoswit App to your smart device and enjoy it now!

Yoswit will automatically detect the switch and add it to your device list.

installation_complete
