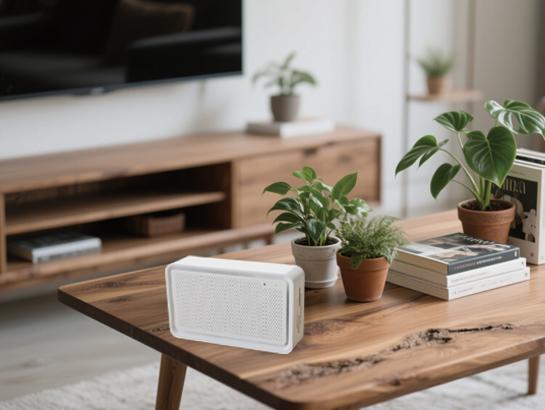

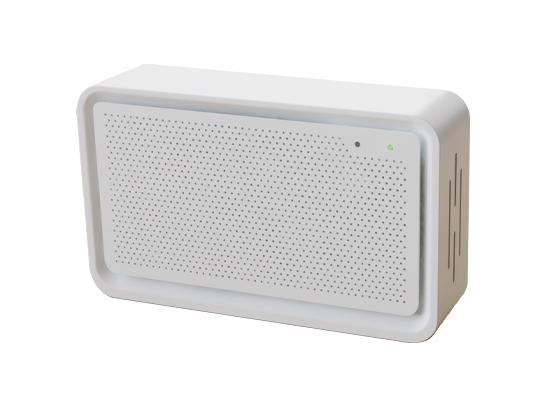

Smart IAQ Sensor
Product Code: YO161 (R2W)
Features:
- Comprehensive Detection of Various Air Pollutants

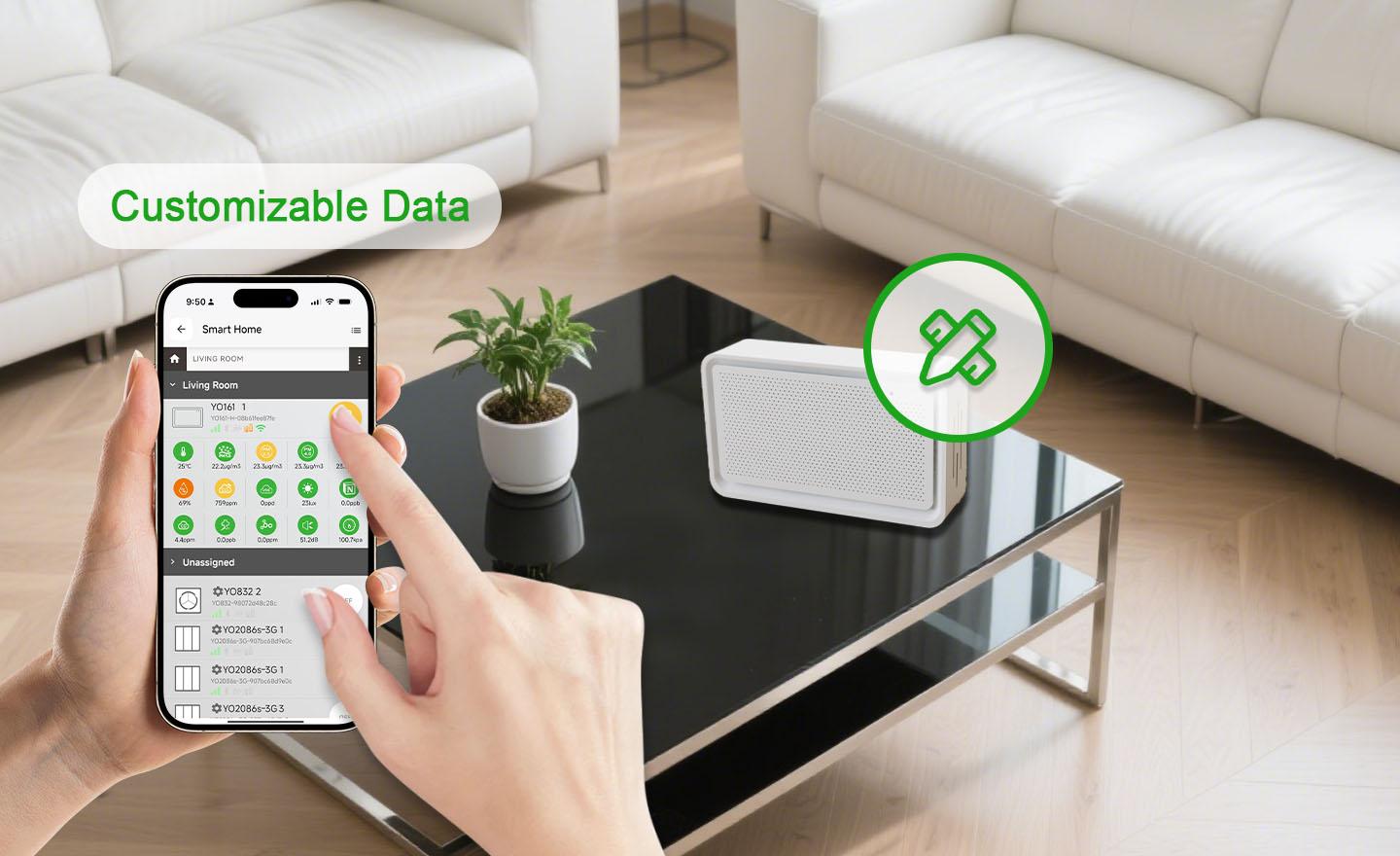

- Customizable Data Update Intervals and Thresholds for Air Types
- Automatic Alerts When Pollutant Levels Exceed Defined Thresholds

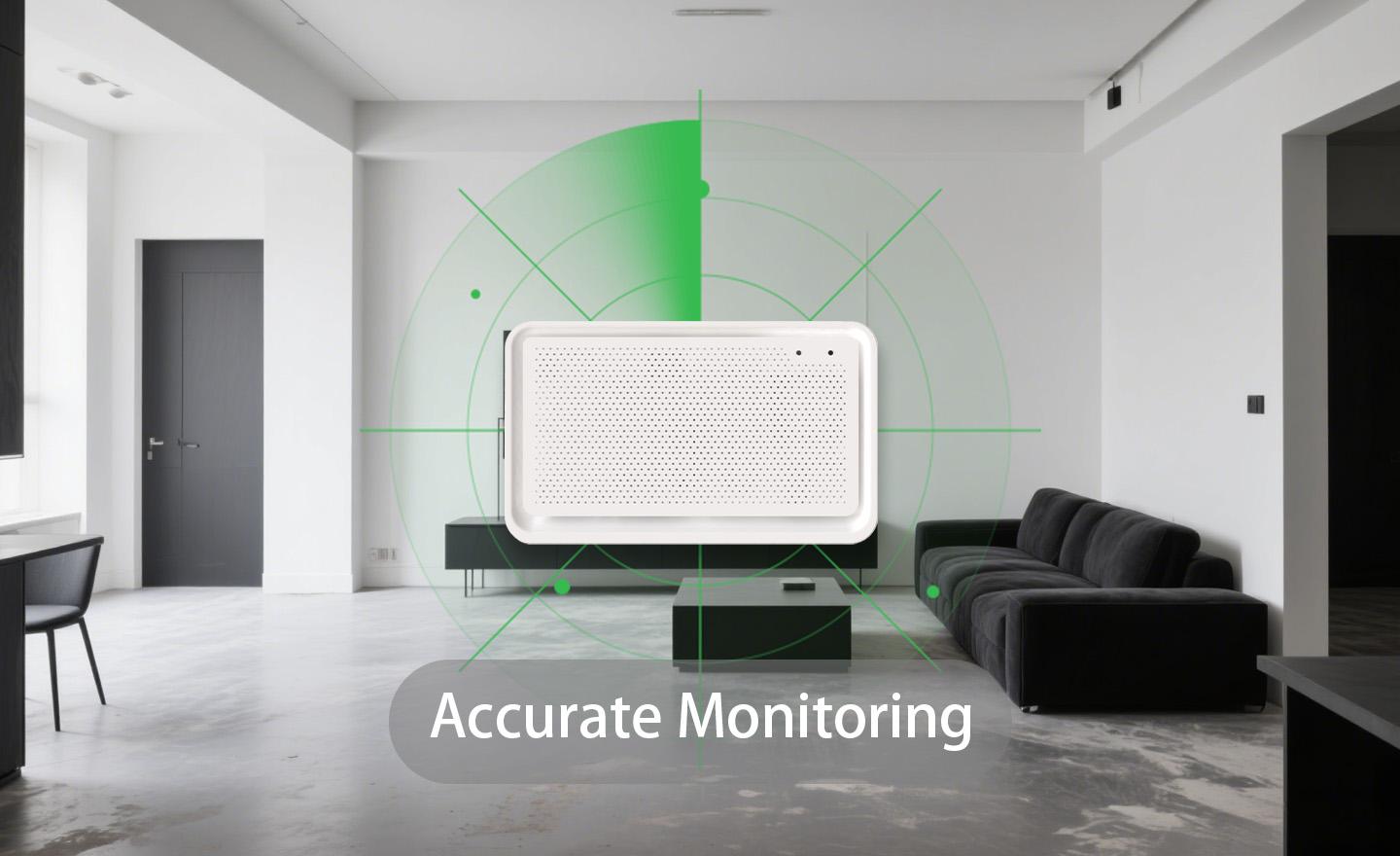

- Stable and Accurate Monitoring
- Long-term precision minimizes maintenance and recalibration needs
- Intuitive Indicator Lights Provide an Overview of Air Quality Status
- Sleek and compact design integrates with any building management system
Features
Run Your Home from Your Phone
Mobile as Hub
Voice Control
Mesh-like Network
Remote Control
Rooms and Scenes
Away Detection
Schedule Timers
Password Protection
IFTTT
Bluetooth Version
We use Bluetooth 4.2 (also sometimes referred to as Bluetooth Low Energy or BLE) as the core processor of our products.
Compatible Devices
We support all Smart Ready products with our application installed. Please click here to get the growing list.
iOS Support
We support iOS 13.0 or later.
Android Support
We support Android 7 or later.
| General | ||
| Product Name |
Smart IAQ Sensor
|
|
| Model |
YO161 (R2W)
|
|
| EAN / UPC |
EAN: 0765756497305 / UPC: 765756497305
|
|
| Revision |
V1.0
|
|
| Compliance |
CE, FCC, RoHS
|
|
| Manufacturer |
Designed by Yoswit in Hong Kong, China / Assembled in Guangdong, China
|
|

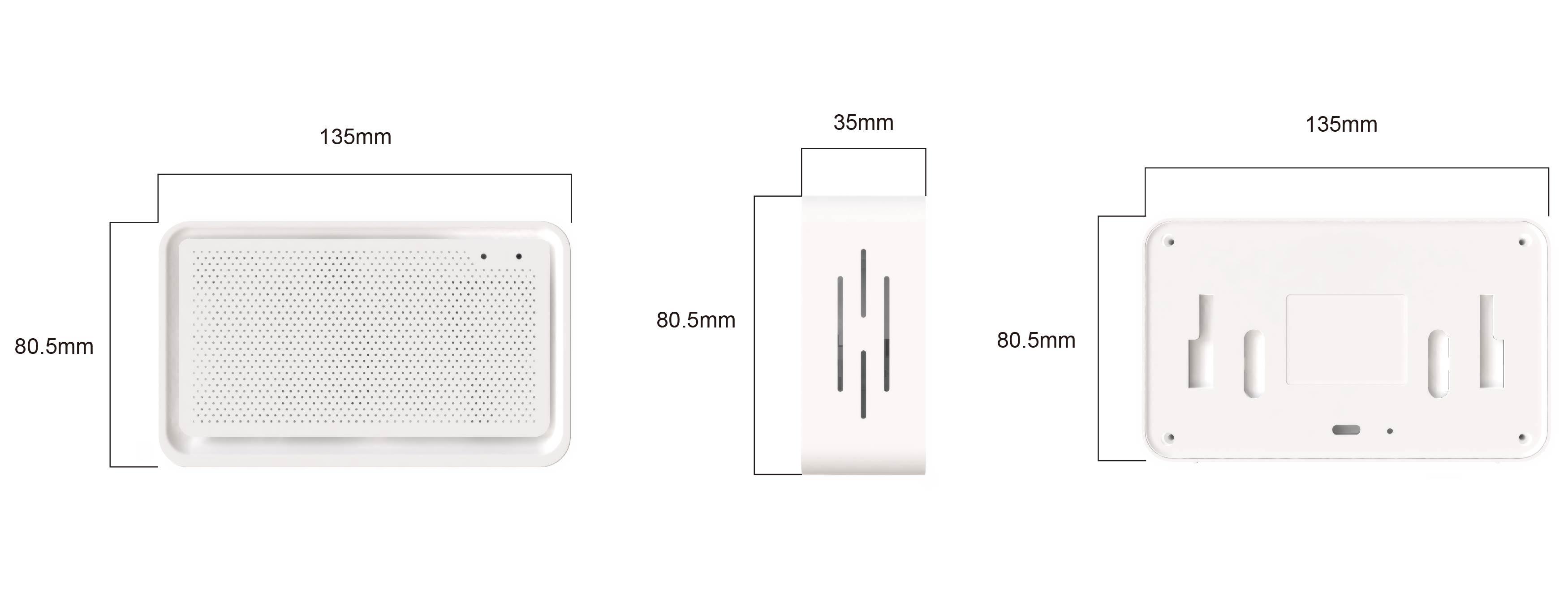

| Dimensions | ||
| Product Size |
|
|
| Detection Function & Detection Range | ||
| Score |
0-100
|
|
| Volatile Organic Compounds (VOC) Nitrogen Oxides (NOX) |
Measurement Range: 0~1000ppm
|
|
| Temperature |
Measurement Range: -10~50℃
|
Measurement Accuracy: ± 1℃
|
| Humidity |
Measurement Range: 0~90% RH
|
Measurement Accuracy: ± 6% RH
|
| PM1/PM2.5/PM4/PM10 |
Measurement Range: 0~1000ug/m³
|
Measurement Accuracy: ± 10%
|
| CO1 |
Measurement Range: 0~500ppm
|
Measurement Accuracy: ± 0.1ppm
|
| CO2 |
Measurement Range: 400~2000ppm
|
Measurement Accuracy: ± 40ppm
|
| O3 Concentration |
Measurement Range: 0~10ppm
|
Measurement Accuracy: ± 0.01ppm
|
| HCHO |
Measurement Range: 0~5ppm
|
Resolution: ≤0.01ppm
|
| Ambient Light |
Measurement Range: 0.01~83,000Lux
|
Measurement Accuracy: ± 1Lux
|
| Atmospheric Pressure |
Measurement Range: 300~1100hPa
|
Measurement Accuracy: ± 1hPa
|
| Noise |
Measurement Range: 30~100db
|
Measurement Accuracy: ± 5db
|
| Hardware | ||
| Power Supply |
DC 5V / 2A
|
|
| Power Dissipation |
<5W
|
|
| Power Supply Interface |
Type-C
|
|
| Air Quality Display |
RGB Light
|
|
WARNING!
Avoid direct exposure to strong winds, sunlight, air conditioning vents, and heating devices to prevent distortion of temperature and air quality data.
Basic Installation
1
Choose a location that is well-ventilated, away from strong winds and direct sunlight.
2

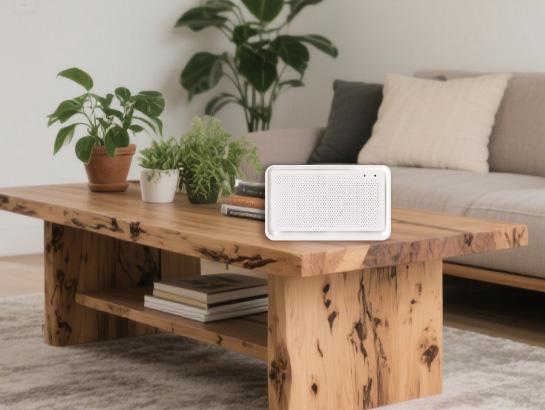

Place the sensor on a stable surface or use a wall mount bracket to secure it to the wall.
3
Connect the power using the USB power cable and ensure the power indicator light is on.
4
Wait for the sensor to initialize and the data to stabilize. Then proceed to set up and monitor air quality with the App.
Installation complete.
Download the Yoswit App to your smart device and enjoy it now!
Yoswit will automatically detect the switch and add it to your device list.
