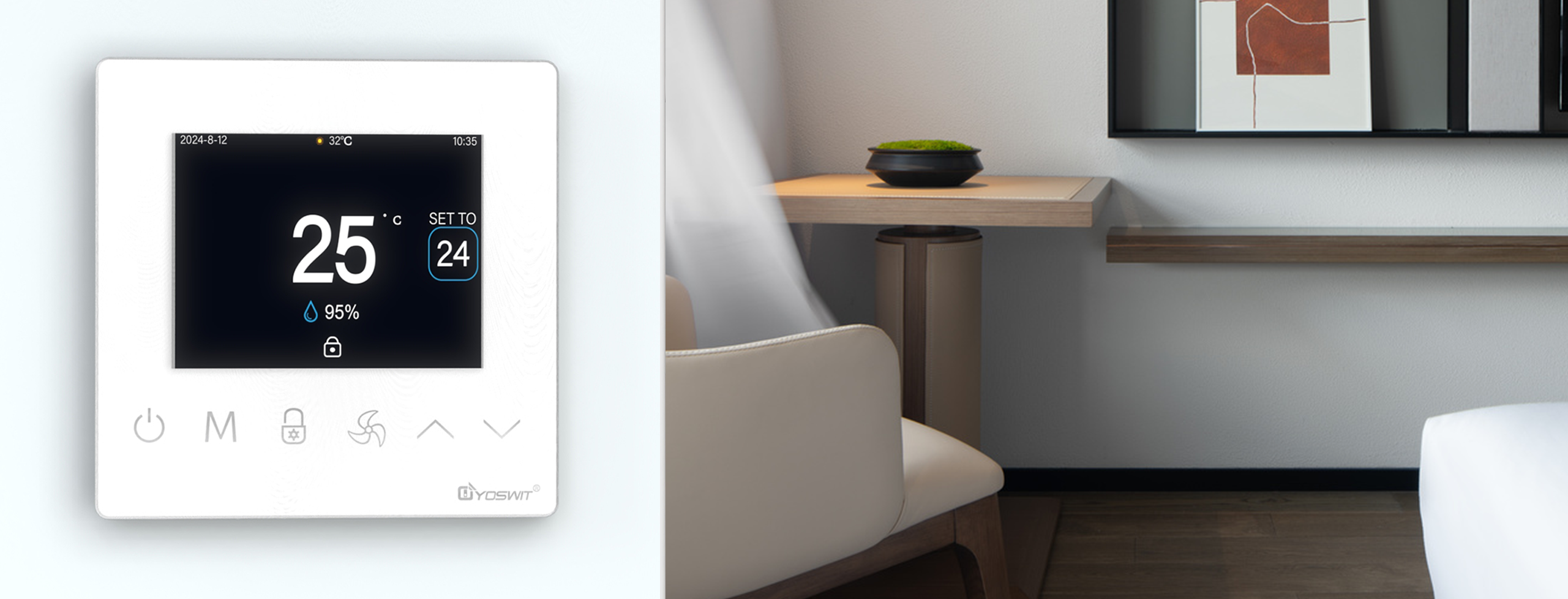

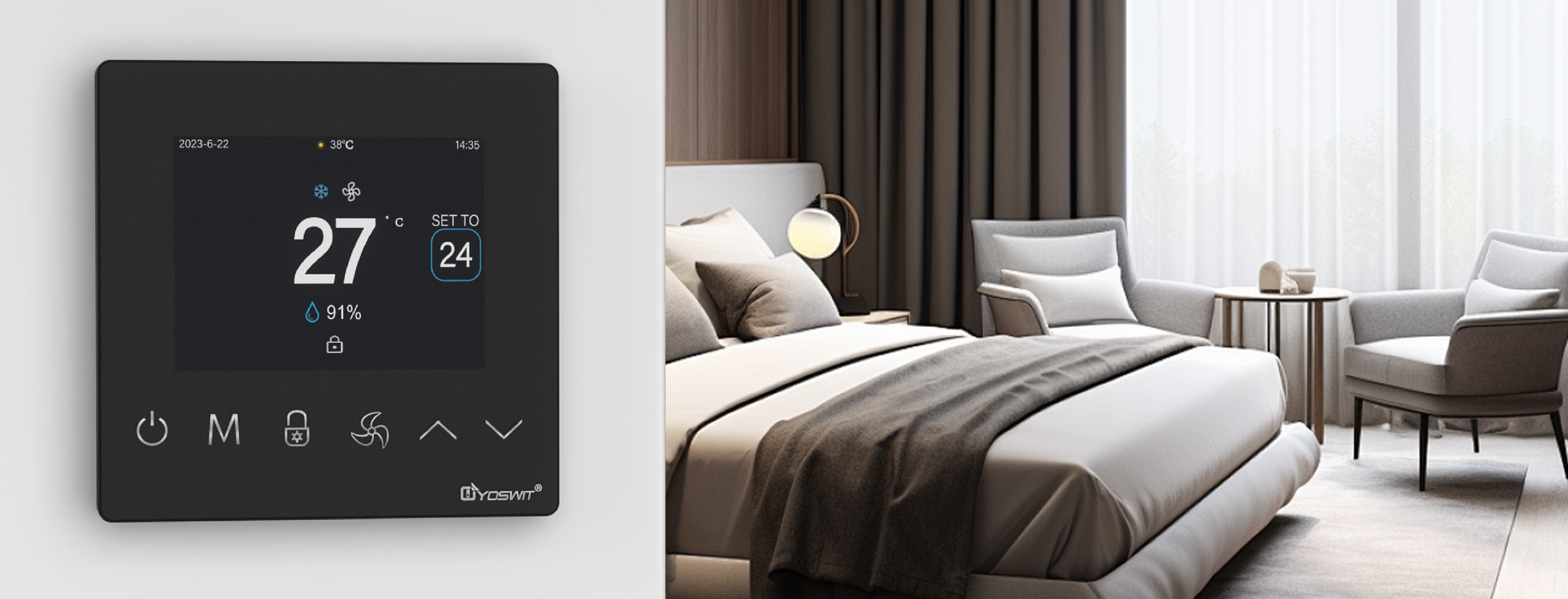

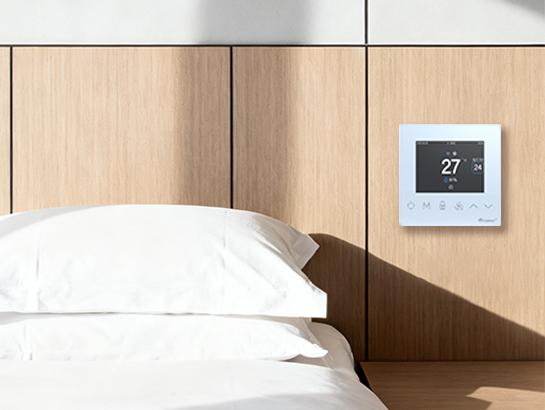

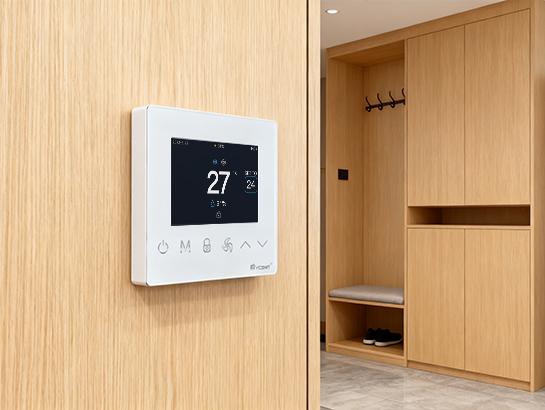

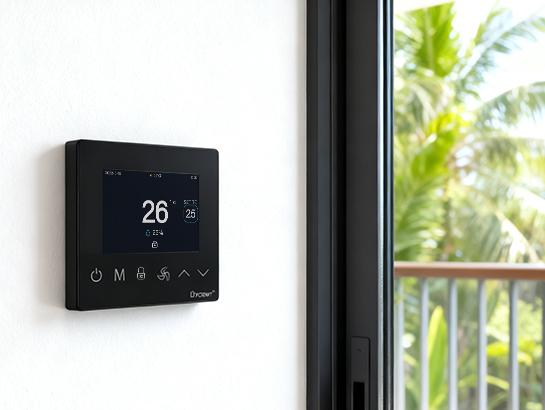

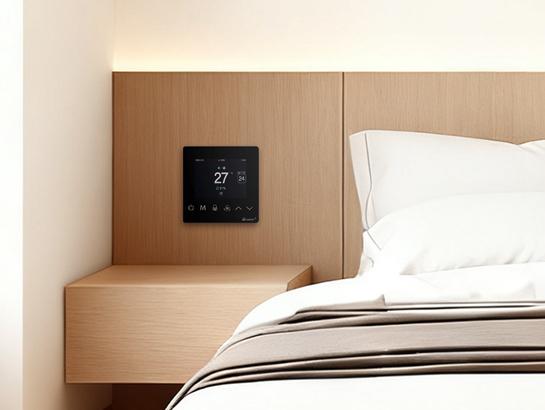

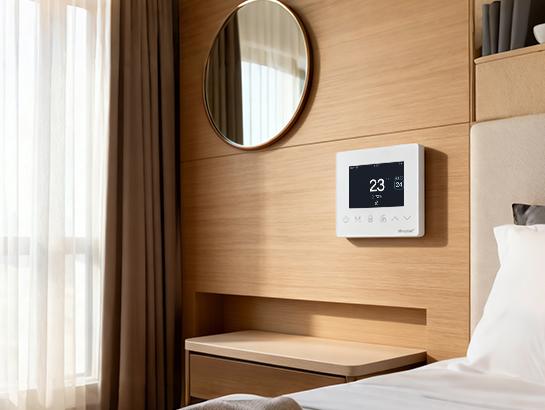

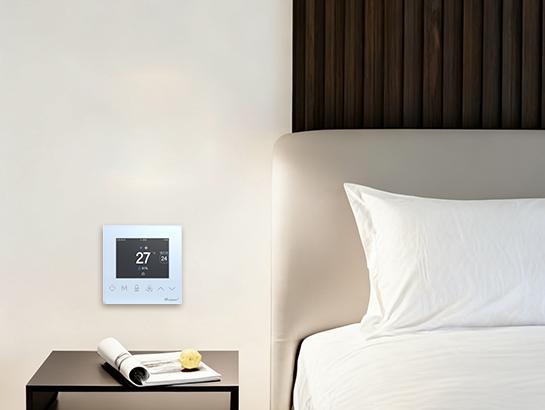

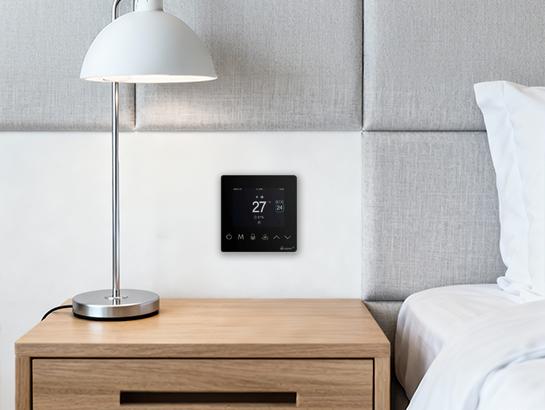

Smart Thermostat - FCU
Product Code: YO360 (R2W)
- Built-in Timer for Pre-Setting Desired Temperatures
- High Compatibility
- Rapid Retrofit
- Indoor Climate Control
- 30% Initial Cost Savings
- Power-off Memory
- Remote Sensor Ready
- Equipped with Dry Contact
- 3 Woking Modes
- Configurable Program
Product Variant:
Template
Features
Bluetooth Version
We use Bluetooth 4.2 (also sometimes referred to as Bluetooth Low Energy or BLE) as the core processor of our products.
Compatible Devices
We support all Smart Ready products with our application installed. Please Click Here to get the growing list.
IOS Support
We support iOS 13.0 or later.
Android Support
We support Android 7 or later.
| General | ||
| Product Name |
Yoswit Smart Thermostat
|
|
| Model |
YO360 (R2W)
|
|
| Socket Type |
Socket 86
|
|
| Revision |
V7.0
|
|
| Compliance |
CE, FCC, RoHS
|
|
| Manufacturer |
Designed by Yoswit in Hong Kong, China / Assembled in Guangdong, China
|
|
| Dimensions | ||
| Product Size |
|
|
| Mechanical | ||
| Operating Temperature |
-10-49℃
|
|
| Operating Humidity |
0-95% RH, Non-Condensing
|
|
| Operating Environment |
Interior
|
|
| Operation |
APP / Manual
|
|
| Display |
2.8 Inches
|
|
| Ingress Protection (IP) |
20
|
|
| External Temperature Sensor |
NTC 10K (Optional)
|
|
| Electrical | ||
| Operation Power |
100-240V AC (50/60Hz)
|
|
| Max. Load |
≤5A (Resistive), ≤2A (Inductive)
|
|
| Power Consumption |
≤2W
|
|
| Temperature Display Range |
0-49℃
|
|
| Temperature Set Point Range |
5-35℃
|
|
| Temperature Set Point |
1℃
|
|
| Temperature Accuracy |
±1℃
|
|
| Humidity Display Range |
0-99%
|
|
| Humidity Accuracy |
±3%
|
|
| Application |
2-Pipe / 4-Pipe
|
|
| Wireless | ||
| Frequency |
2.4GHz
|
|
| Connection |
Wifi 2.4G / BLE 4.2
|
|
| Range |
Open Area: >50m / Interior: 3-20m
|
|
| Package | ||
| What's in the Box |
|
|
WARNING !
Disconnect Power
To prevent severe shock or electrocution, always disconnect the power at the service panel before installation. Only licensed electricians should carry out the installation.

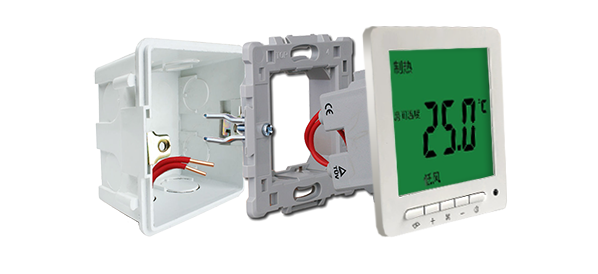

Basic Installation
1
Remove the old switch and disconnect the wires, please make sure that there is about 5mm of bare wire exposing.
2
Insert a small, flat screwdriver in notches on wall plate and twist gently to pry from frame to remove wall plate.
3
Connect the wires to the switch case. Make sure that the wires are secure.
Warning
To reduce risk of electrical shock, unit shall be properly grounded in accordance with local regulations or codes. Failure to connect the ground wire will result in an unsafe installation that could lead to personal injury.
4
Fasten the switch on wall by placing the proper wall mount components.
5
Turn on the circuit breaker and connect to the power.
6
Test your switch by tapping 2 to 3 times. Your appliances will be on/off.
7
Snap wall plate to frame. There are four click-stops for adjusting the fit of the wall plate to the switch and the wall.
Installation complete.
Download the Yoswit App to your smart device and enjoy it now!
Yoswit will automatically detect the switch and add to your device list.
